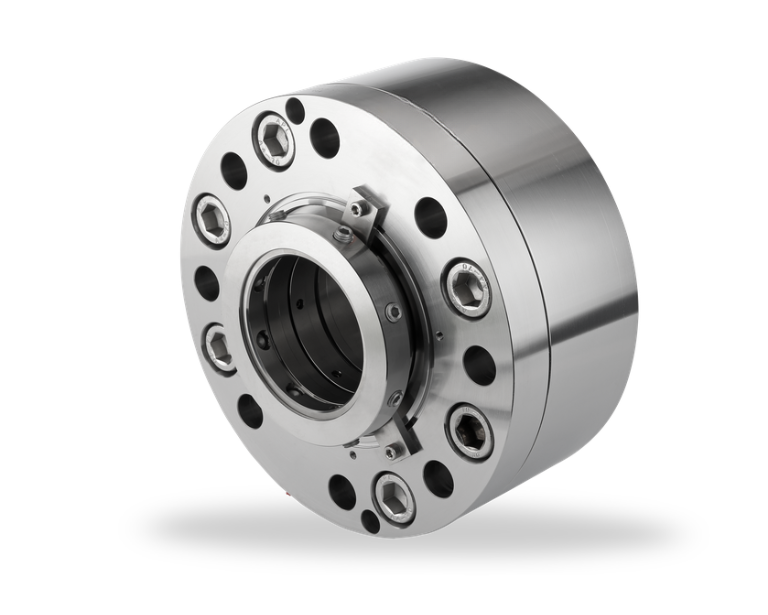

RJWDF-(P) DGS6
Mechanical Seals For Pumps
Materials
- Primary seat and seal face: Silicon carbide with DiamondFace technology
- Secondary seat and seal face: Silicon carbide with DLC coating (optional: DiamondFace technology)
- Secondary seals: FKM, FFKM, PTFE (DF-PDGS6). Other elastomers available, depending on product gas composition
- Metal parts: 1.4006 (410) and other stainless steels
Advantages
- Diamond Face sliding surface technology for maximum operational performance under multiphase process conditions (liquid, vapor, supercritical)
- Ideal upgrade solution for wet mechanical seals with dry running issues
- Simple set-up: seal gas heating and nitrogen buffer are not required
- Stiff sealing gap creates necessary heat and doesn´t require additional heating
- Significantly lower leakage rate avoids icing problems with CO2 (Joule Thomson effect) and keeps emission rate low
- High film stiffness in all operating modes
- Proven reliable and economical solution
- Adjustable to extreme narrow installation space - retrofits are easy to implement
Features
- Dry gas seal for multiphase pump applications
- Diamond Face sliding surface technology
- Ideal for applications with Ethane, CO2, and similar media with low vapor margins
- Shrouded rotating ring
- Bi-directional
- Ready-to-fit cartridge unit
- Single, double, tandem, and tandem with intermediate labyrinth available
Recomended Application
- NGL (Natural Gas Liquids) processes
- Flashing hydrocarbon applications
- Liquid and supercritical CO2-applications
- Oil and gas industry
- Refining technology
- Petrochemical industry
- LNG
- CCUS
- Hydrogen
- Power generation
Recommended piping plans
- API Plan 76
Optional
- API Plan 02
- API Plan 12
- API Plan 13
- API Plan 32
- API Plan 72
- API Plan 75
